Label Winding Guide

Take a look at our handy guide to knowing which Label Handling to use on our Labelling Machines.

All labels to be outside wound with a 3mm minimum label gap and Ø76mm internal core


RHEL = right hand edge leading

LHEL = left hand edge leading


Machine direction is from operator position looking at the front of the machine

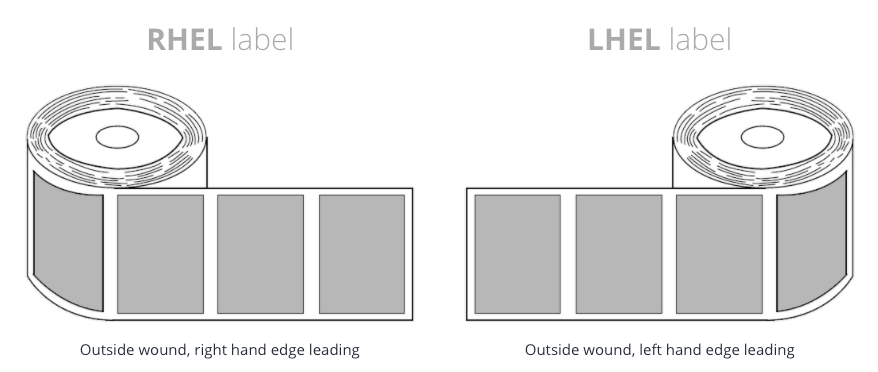

Winding Diagram






Machine Handing Diagram


P250 Right to Left Hand


In this example, the front label head (closest to operator position) would use a LHEL label


The rear label head (furthest from operator position) would use a RHEL label





P250 Left to Right Hand



In this example, the front label head (closest to operator position) would use a RHEL label


The rear label head (furthest from operator position) would use a LHEL label
